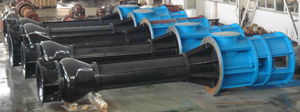

VS1 Wet Pit Pump

Type LP VS1

Structure:

Single casing diffuser type, with discharge through column.

Range of performance:

                Nozzle:             DN100~400

                Capacity (Q):     90~11000m3/h

                Head (H):           30~300m

                O.Temperature:  -20~+210oC

                O.Pressure:       PN25

Application:

For deep well, wet pit industrial water supply and drainage, drinking water in the city, civil fire fighting and water intaking from the river, lake and sea, also for petroleum chemical industry, for example: metallurgy, mine, chemical industry, paper making, water power station and thermal power station etc.
